Lesson 9: Advanced Protocols and Hooks

🎯 Core Concept: The Future of Programmable Liquidity

Uniswap V4 introduces hooks—customizable smart contracts that execute at key moments in a pool's lifecycle. This enables dynamic fees, limit orders, and automated liquidity management. This lesson explores V4's architecture and how hooks will transform LPing.

🏗️ Uniswap V4 Architecture

The Singleton Design

V3 Problem: Each pool = separate contract (expensive, fragmented) V4 Solution: All pools in one contract (PoolManager)

Benefits:

99% reduction in pool creation gas
Multi-hop swaps without token transfers
Unified liquidity management

Flash Accounting

Concept: Net settlement at transaction end (EIP-1153: Transient Storage)

How It Works:

Swaps occur in memory (no transfers)
Net balances calculated
Final settlement at end

Gas Savings: Massive reduction in ERC-20 transfers

Native ETH Support

V3: Must wrap ETH to WETH V4: Native ETH pairs supported

Benefit: One less token conversion, lower gas

Uniswap V4 Architecture Diagram

🪝 Understanding Hooks

What Are Hooks?

Hooks are external smart contracts that execute custom logic at specific points:

Before Initialize: Set custom parameters After Initialize: Post-setup actions Before Swap: Modify swap behavior After Swap: Post-swap actions Before Add Liquidity: Pre-deposit checks After Add Liquidity: Post-deposit actions Before Remove Liquidity: Pre-withdrawal checks After Remove Liquidity: Post-withdrawal actions

Hook Use Cases

1. Dynamic Fees:

Adjust fees based on volatility
Time-weighted fees
Utilization-based fees

2. Limit Orders:

Execute swaps at target prices
Automated DCA strategies
Stop-loss protection

3. Active Liquidity Management (ALM):

Auto-rebalancing ranges
Volatility-based range adjustment
Mean reversion strategies

4. Oracle Integration:

Custom price feeds
TWAP (Time-Weighted Average Price) oracles
Cross-chain price feeds

5. Access Control:

Whitelisted LPs
Permissioned pools
KYC integration

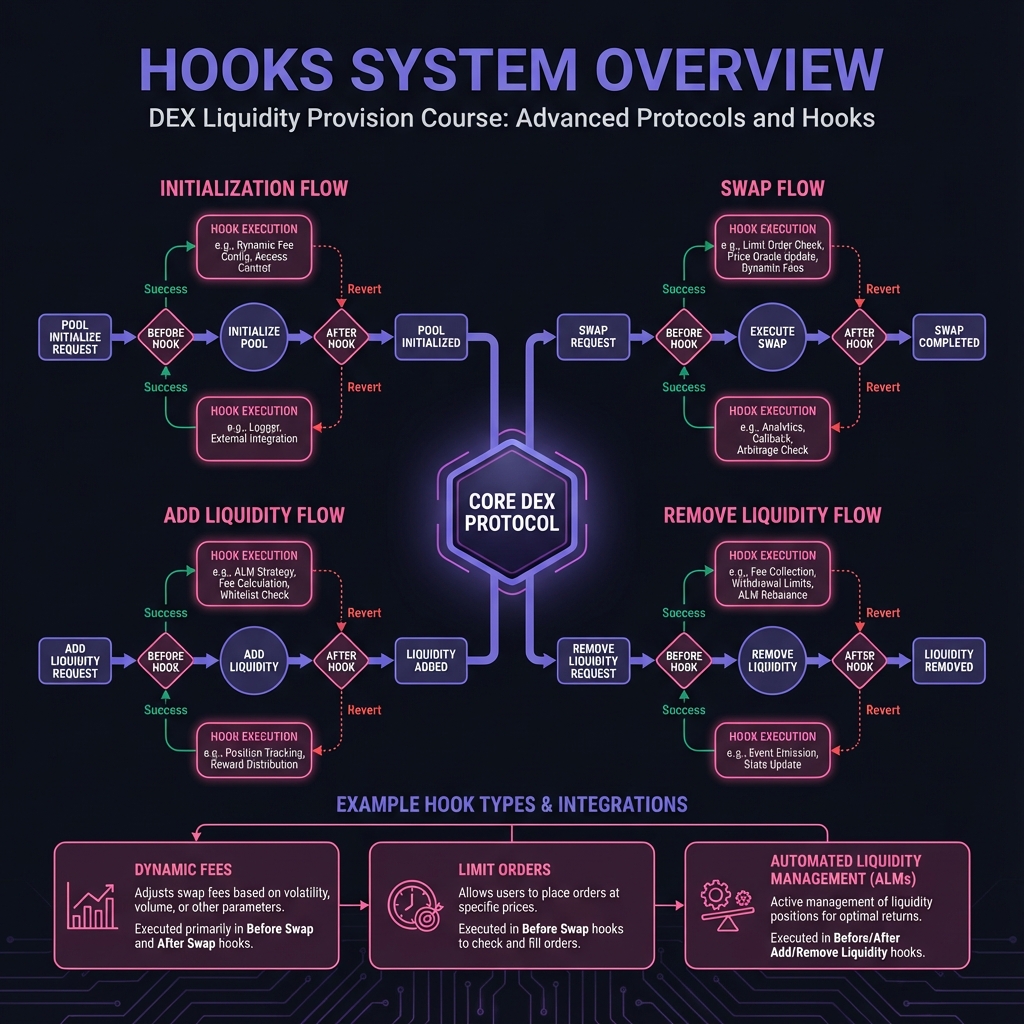

Hooks System Overview

🔧 Hook Architecture

Hook Interface

interface IHooks {
    function beforeInitialize(...) external returns (bytes4);
    function afterInitialize(...) external returns (bytes4);
    function beforeSwap(...) external returns (bytes4);
    function afterSwap(...) external returns (bytes4);
    // ... other hook functions
}

Hook Permissions

Hooks can be:

Permissionless: Anyone can use
Permissioned: Only approved hooks
Custom: Pool-specific hooks

Gas Optimization

Hooks add gas costs. V4 optimizes by:

Optional hooks (only pay if used)
Efficient hook execution
Batch operations

📊 Active Liquidity Managers (ALMs)

What Are ALMs?

ALMs are protocols that manage V3/V4 positions automatically:

Rebalance ranges
Collect and compound fees
Optimize for maximum yield

Popular ALMs

Arrakis Finance:

Automated V3 range management
Fee compounding
Multi-strategy vaults

Gamma Strategies:

Volatility-based rebalancing
Mean reversion strategies
Risk-adjusted returns

Charm Finance:

Options-based strategies
Delta-neutral positions
Advanced hedging

Using ALMs

Benefits:

✅ Automated management
✅ Professional strategies
✅ Fee compounding
✅ Gas optimization

Risks:

❌ Smart contract risk (additional layer)
❌ Management fees (typically 10-20% of fees)
❌ Less control

Best For: LPs who want passive management with professional strategies

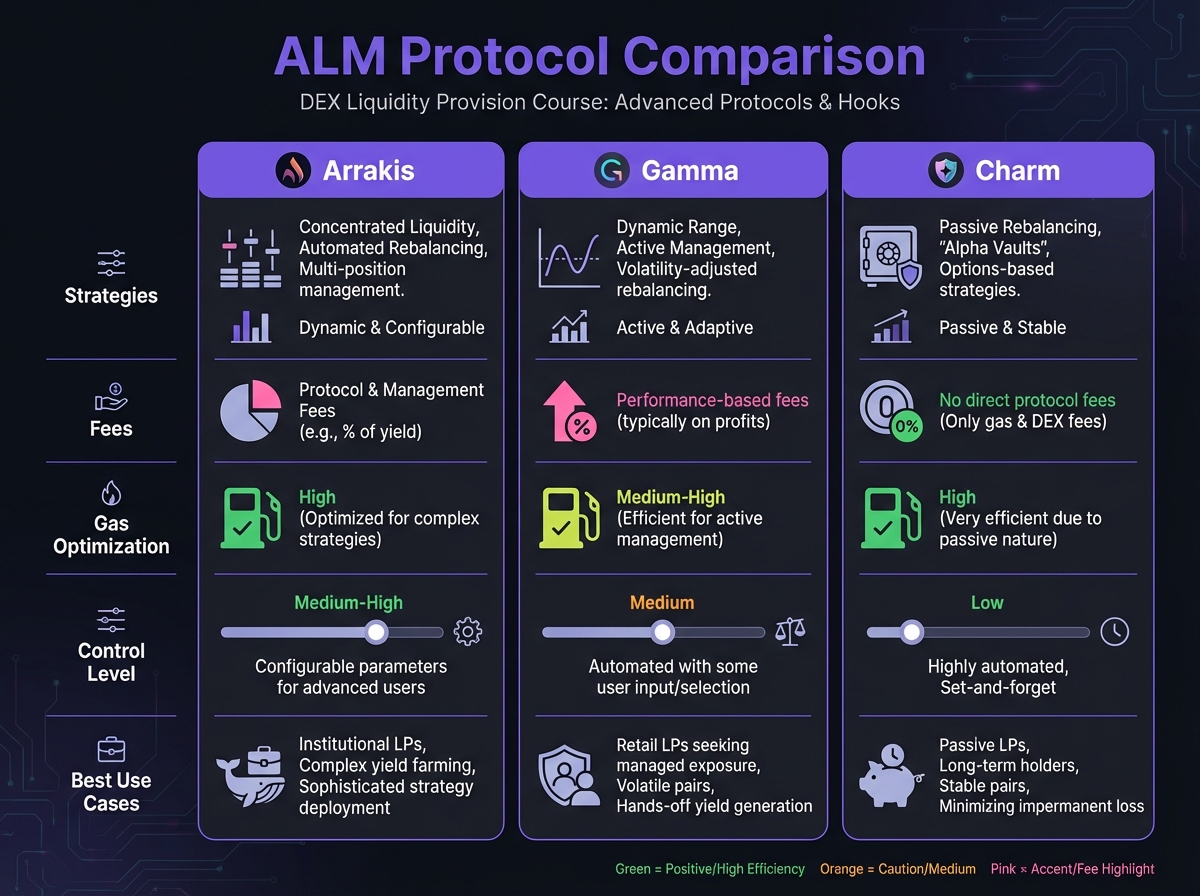

ALM Protocol Comparison

🎯 V4 Hook Strategies

Strategy 1: Dynamic Fee Hook

Concept: Adjust fees based on volatility

Implementation:

Monitor price volatility
Increase fees during high volatility
Decrease fees during low volatility

Benefit: Compensates LPs for increased IL/LVR risk

Strategy 2: Limit Order Hook

Concept: Execute swaps at target prices

Implementation:

Set target price
Hook executes swap when price reached
Automated DCA or profit-taking

Benefit: Combines AMM with order book functionality

Strategy 3: Auto-Rebalancing Hook

Concept: Automatically adjust ranges

Implementation:

Monitor price vs. range
Rebalance when price approaches boundaries
Maintain optimal range width

Benefit: Maximizes fee capture, minimizes out-of-range risk

Strategy 4: TWAP Oracle Hook

Concept: Custom price oracle for pool

Implementation:

Calculate time-weighted average price
Use for limit orders, rebalancing
More accurate than spot price

Benefit: Reduces front-running, improves execution

🔬 Advanced Deep-Dive: Hook Security

Security Considerations

Hook Risks:

Bugs in hook code
Malicious hooks
Gas griefing attacks

Mitigation:

Audit all hooks before use
Use only verified hooks
Test on testnet first
Start with small positions

Hook Best Practices

Verify Hook Source: Only use audited hooks
Test First: Always test on testnet
Start Small: Test with minimal capital
Monitor: Watch hook behavior closely
Understand Logic: Read hook code before using

🎓 Beginner's Corner: V4 and Hooks

Q: Do I need to understand hooks? A: Not immediately. V4 will work like V3 initially. Hooks are optional enhancements.

Q: Are hooks safe? A: Depends on the hook. Only use audited, verified hooks. Test thoroughly.

Q: Will V4 replace V3? A: Gradually. V3 will remain active. V4 offers new capabilities but more complexity.

Q: Should I wait for V4? A: No. Learn V3 now. V4 knowledge builds on V3. Start with V3, migrate when ready.

Q: How do I use hooks? A: Through ALM protocols initially. Direct hook interaction is advanced. Start with ALMs.

📈 Real-World V4 Example

Scenario: ETH/USDC pool with dynamic fee hook

Setup:

Base fee: 0.05%
Volatility multiplier: 0.1% per 10% volatility
Current volatility: 5%

Fee Calculation:

Base: 0.05%
Volatility adjustment: 5% ÷ 10% × 0.1% = 0.05%
Total fee: 0.10%

If volatility increases to 15%:

Volatility adjustment: 15% ÷ 10% × 0.1% = 0.15%
Total fee: 0.20%

Benefit: LPs earn more during volatile periods (compensating IL/LVR)

🔑 Key Takeaways

V4's Singleton reduces gas by 99% for pool creation
Hooks enable customization - dynamic fees, limit orders, ALMs
Flash Accounting eliminates intermediate transfers
ALMs automate complex strategies for passive LPs
Hook security is critical - only use audited hooks
V4 is optional - V3 remains viable, learn V3 first
Future of LPing will be increasingly automated via hooks

🚀 Next Steps

Lesson 10 covers MEV, JIT liquidity, and advanced tactics used by professional LPs. Understanding these concepts helps you protect your positions and optimize returns.

Complete Exercise 9 to explore V4 hooks and ALM integration strategies.

Remember: V4 and hooks represent the future, but V3 is the present. Master V3 first, then explore V4 when you're ready. Hooks are powerful but add complexity and risk.
